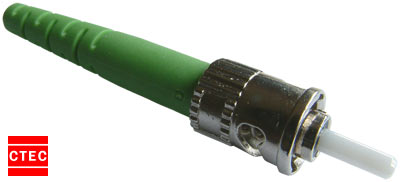

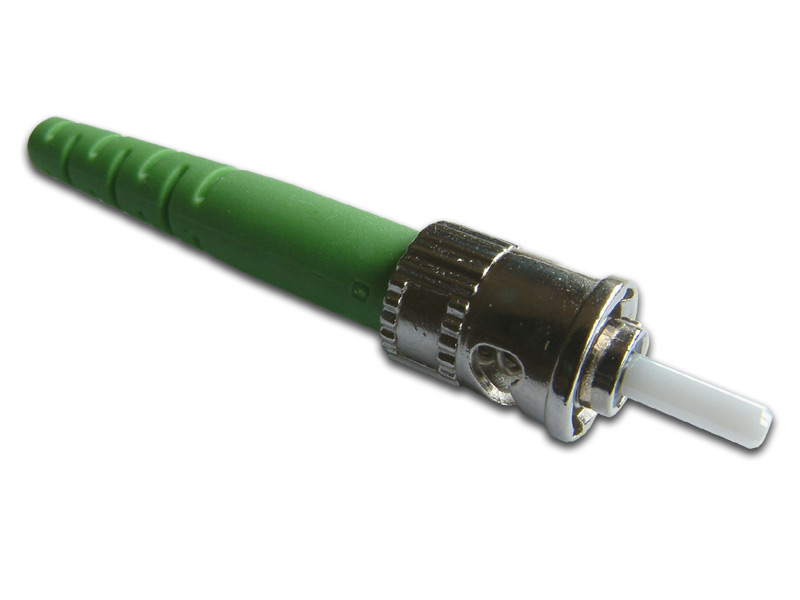

'FibreOptics'ST/APC Connectors
Overview
CTEC ST/APC fibre optic connectors comprise of a nickel plated brass or full die-cast body together with a full ceramic conic ferrule. These connectors are suitable for 900µm and 2-3mm cables. The connector is precision made and the end face is polished to 8° APC. The combination of a ceramic ferrule and precision metal housing provides consistent long-term mechanical and optical performance.
Performance Criteria
| Parameters | ST/APC |
|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm |
| Insertion Loss (Typical) | 0.20dB |
| Insertion Loss (Maximum) | 0.45dB |
| Return Loss (Typical) | -60dB |
| Mating Durability (500 cycles) | <=0.2dB |
| Temperature Stability | <=0.3dB |
| Operating Temperature °C | -40°C to +80°C |
| Storage Temperature °C | -40°C to +85°C |
