'FibreOptics'ST & ST/APC Adaptors
Overview

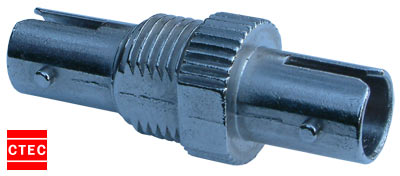

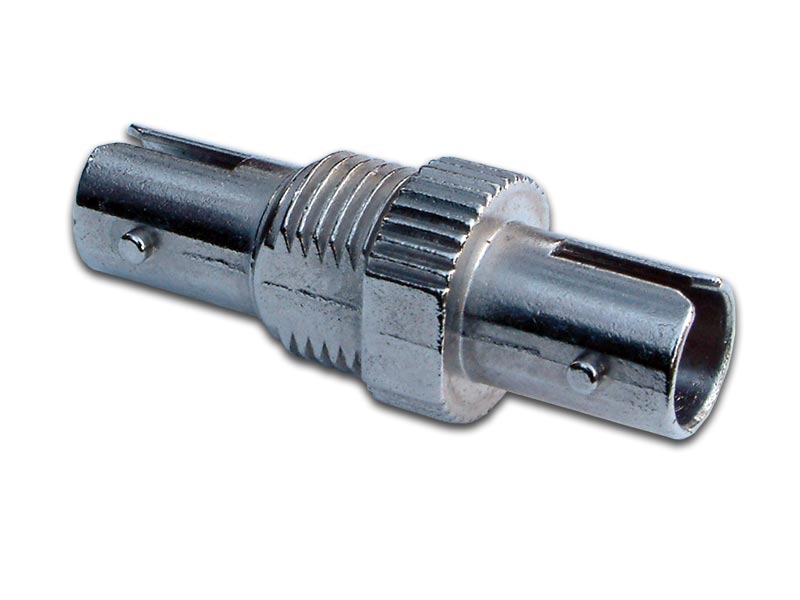

The CTEC ST Adaptor utilises a split full ceramic sleeve. It is suitable for any ST fibre optic application in your network, and many of the communications markets, particularly Datacoms, Telecoms and LAN.
Performance Criteria
| Parameters | ST/PC | ST/APC |
|---|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm | |
| Insertion Loss (Typical) | 0.25dB | 0.30dB |
| Insertion Loss (Maximum) | 0.45dB | |
| Return Loss (Typical) | -50dB | -60dB |
| Mating Durability (500 cycles) | <=0.2dB | |
| Temperature Stability | <=0.3dB | |
| Operating Temperature °C | -40°C to +80°C | |
| Storage Temperature °C | -40°C to +85°C | |
