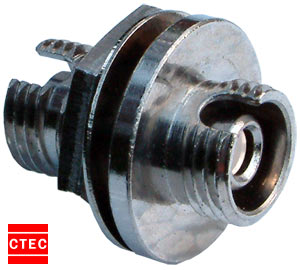

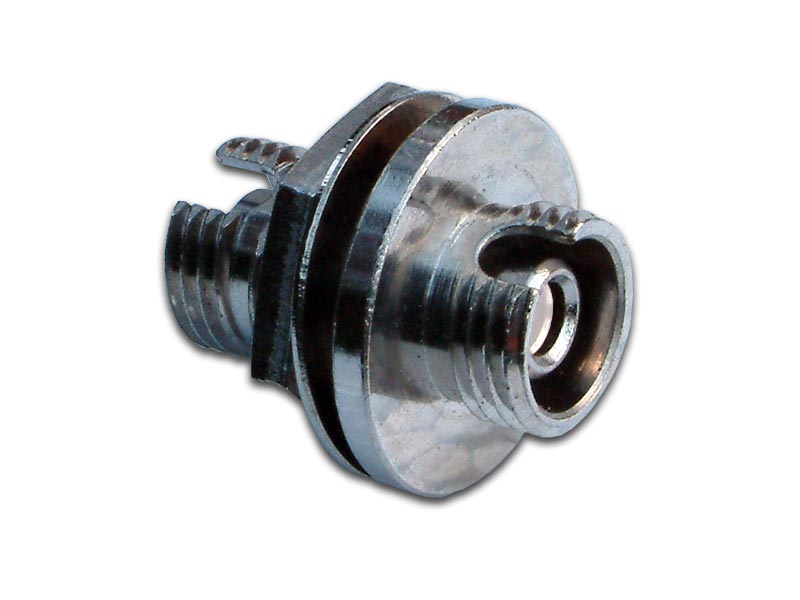

'FibreOptics'FC/PC Adaptor
Overview
This FC/PC Adaptor forms part of the high performance FC/PC fibre optic product range supplied by CTEC. Features include a high quality split ceramic sleeve and a fully machined body.
Performance Criteria
| Parameters | FC/PC | FC/UPC |
|---|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm | |
| Insertion Loss (Typical) | 0.2dB | |
| Insertion Loss (Maximum) | 0.4dB | |
| Return Loss (Typical) | -50dB | -55dB |
| Mating Durability (500 cycles) | <=0.2dB | |
| Temperature Stability | <=0.3dB | |
| Operating Temperature °C | -40°C to +80°C | |
| Storage Temperature °C | -40°C to +85°C | |
