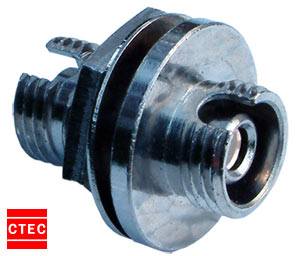

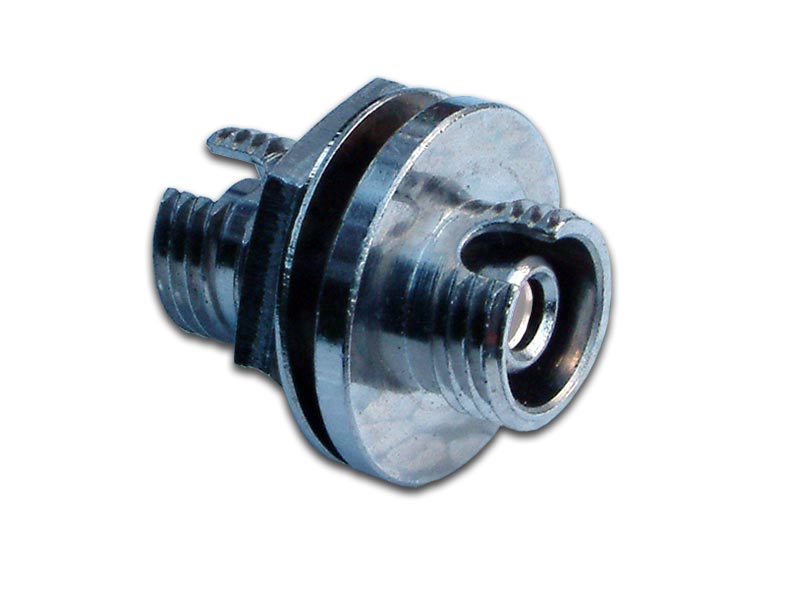

'FibreOptics'FC/APC Adaptor
Overview
This FC/APC Adaptor forms part of the high performing FC/APC fibre optic product range supplied by CTEC. This D-Hole type features a high quality split ceramic sleeve and a fully machined body.
Performance Criteria
| Parameters | FC/APC |
|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm |
| Insertion Loss (Typical) | 0.2dB |
| Insertion Loss (Maximum) | 0.3dB |
| Return Loss (Typical) | -65dB |
| Mating Durability (500 cycles) | <=0.2dB |
| Temperature Stability | <=0.3dB |
| Operating Temperature °C | -40°C to +80°C |
| Storage Temperature °C | -40°C to +85°C |
