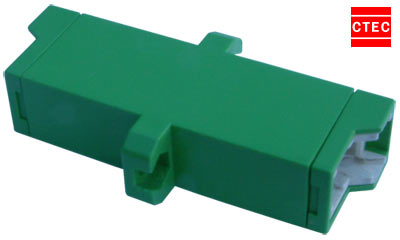

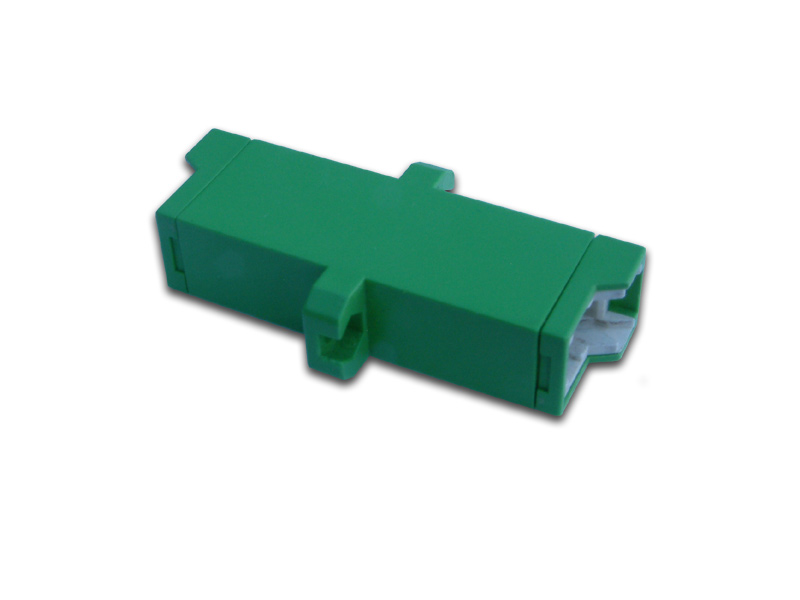

'FibreOptics'E2000/APC Adaptor
Overview
This E2000/APC Adaptor forms part of the high performance E2000/APC product range supplied by CTEC. Features include internal shutter protection, superb insertion & return loss characteristics, and the highest quality parts we can possibly supply.
Performance Criteria
| Parameters | E2000/APC |
|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm |
| Insertion Loss (Typical) | 0.2dB |
| Insertion Loss (Maximum) | 0.3dB |
| Return Loss (Typical) | -65dB |
| Mating Durability (500 cycles) | <=0.2dB |
| Temperature Stability | <=0.3dB |
| Operating Temperature °C | -40°C to +80°C |
| Storage Temperature °C | -40°C to +85°C |
