'FibreOptics'SC/APC Adaptors
Overview

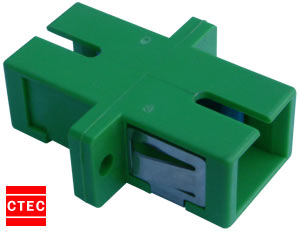

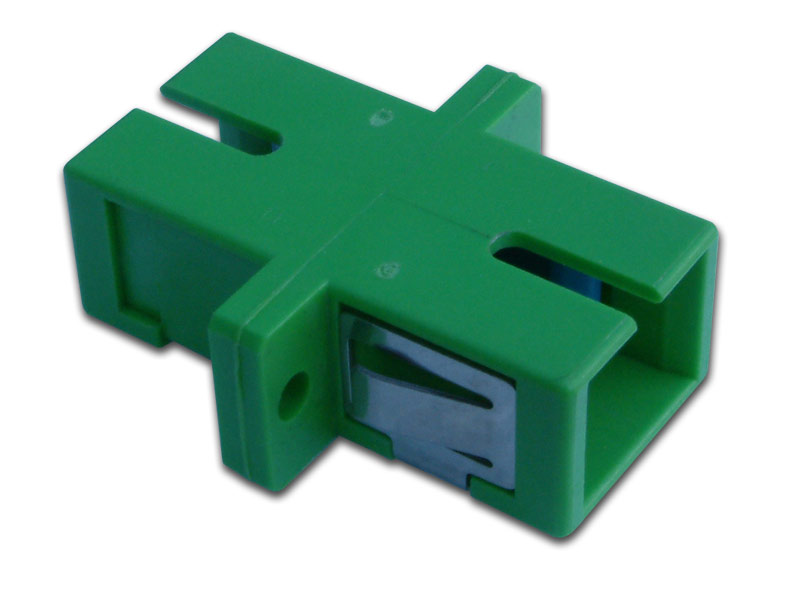

The CTEC SC/APC Adaptor utilises a split full ceramic sleeve. It is suitable for any SC/APC application in your network, and any of the communications markets encompassing Telecoms, CATV, WAN, LAN and Test & Measurement.
Performance Criteria
| Parameters | SC/APC |
|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm |
| Insertion Loss (Typical) | 0.2dB |
| Insertion Loss (Maximum) | 0.3dB |
| Return Loss (Typical) | -65dB |
| Mating Durability (500 cycles) | <=0.2dB |
| Temperature Stability | <=0.3dB |
| Operating Temperature °C | -40°C to +80°C |
| Storage Temperature °C | -40°C to +85°C |
