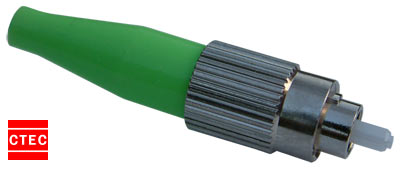

'FibreOptics'FC/APC Connector
Overview

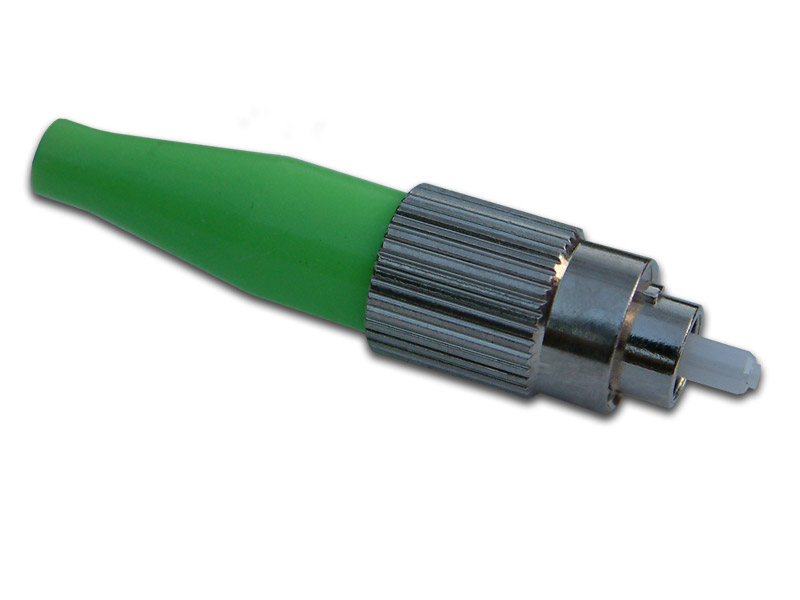

CTEC FC/APC fibre optic connectors are assembled encompassing IEC 874-7 & CECC 86 115-801. To suit customer preferences, this version utilises a stepped style APC ferrule. The performance makes this CTEC product a natural choice for all FC/APC applications, and for any of the communications markets, including Telecoms, CATV, WAN, LAN and Test & Measurement applications.
Performance Criteria
| Parameters | FC/APC |
|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm |
| Insertion Loss (Typical) | 0.2dB |
| Insertion Loss (Maximum) | 0.3dB |
| Return Loss (Typical) | -65dB |
| Mating Durability (500 cycles) | <=0.2dB |
| Temperature Stability | <=0.3dB |
| Operating Temperature °C | -40°C to +80°C |
| Storage Temperature °C | -40°C to +85°C |
