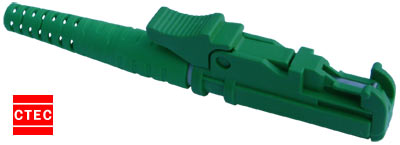

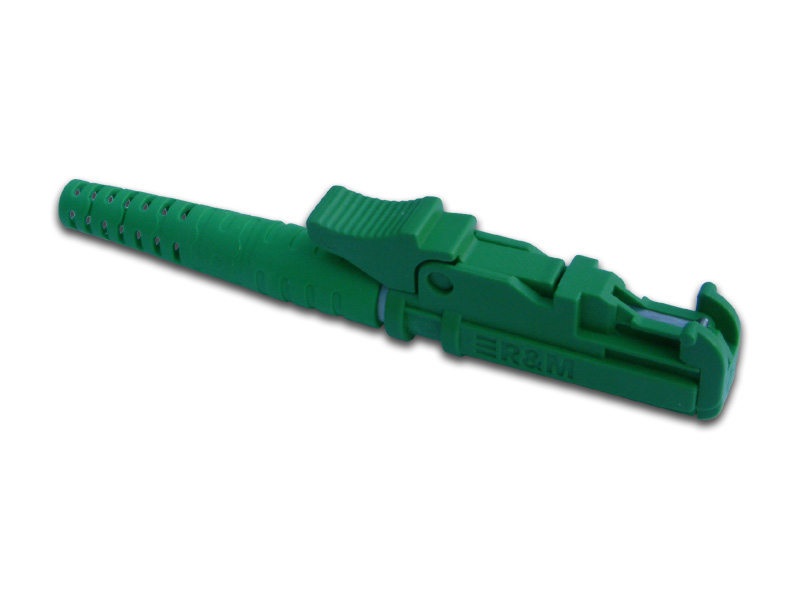

'FibreOptics'E2000/APC Connector
Overview
CTEC supplies possibly the highest quality E2000/APC connectors available, to address the most stringent of specifications encountered in the telecommunications market. This E2000/APC offers unparalleled insertion loss mating figures, exhibits exceptional repeatability, whilst maintaining the already well established, superior features of the E2000 connector family.
Performance Criteria
| Parameters | E2000/APC |
|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm |
| Insertion Loss (Typical) | 0.2dB |
| Insertion Loss (Maximum) | 0.3dB |
| Return Loss (Typical) | -65dB |
| Mating Durability (500 cycles) | <=0.2dB |
| Temperature Stability | <=0.3dB |
| Operating Temperature °C | -40°C to +80°C |
| Storage Temperature °C | -40°C to +85°C |
