'FibreOptics'LC/PC & LC/UPC Connectors
Overview

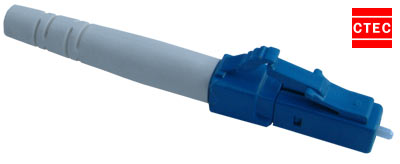

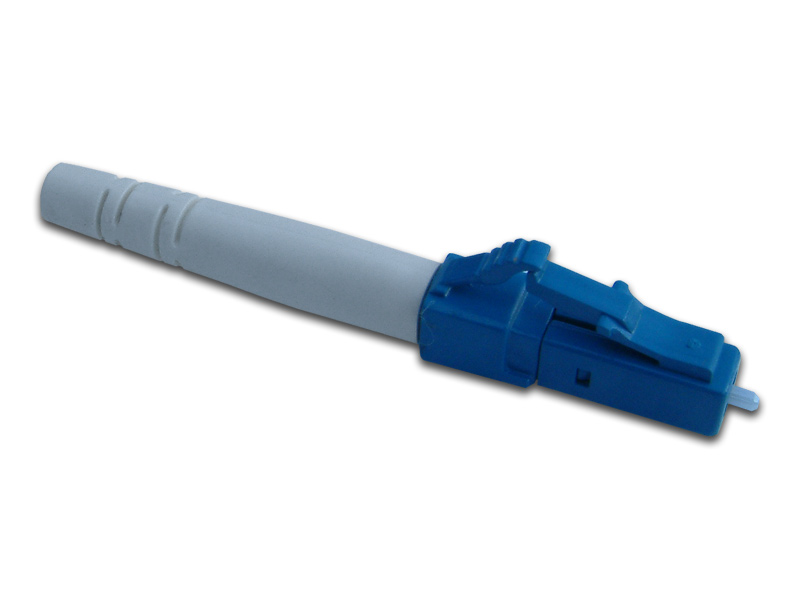

The LC is a small form factor (SFF) connector, ideal for high density applications. It has a zirconia ceramic ferrule measuring Ø 1.25mm, and provides optimum insertion and return loss. It is used on small diameter mini-cordage (1.6mm/2.0mm) as well as 3.0mm cable. These LC connectors are Telcordia, ANSI/EIA/TIA and IEC compliant.
Performance Criteria
| Parameters | LC/PC | LC/UPC |
|---|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm | |
| Insertion Loss (Typical) | 0.2dB | |
| Insertion Loss (Maximum) | 0.4dB | |
| Return Loss (Typical) | -50dB | -55dB |
| Mating Durability (500 cycles) | <=0.2dB | |
| Temperature Stability | <=0.3dB | |
| Operating Temperature °C | -40°C to +80°C | |
| Storage Temperature °C | -40°C to +85°C | |
