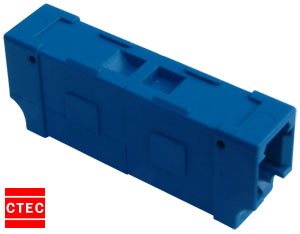

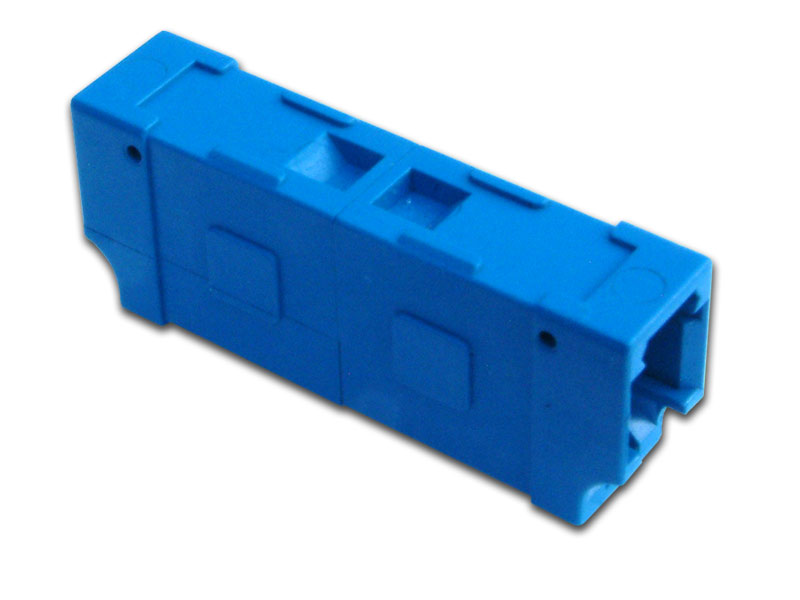

'FibreOptics'LC Adaptors
Overview
CTEC LC Adapters are available in simplex and duplex configurations. They feature self-adjusting panel latches as well as a choice of mounting orientations. They come with a choice of zirconia ceramic or phosphor bronze split sleeves.
Performance Criteria
| Parameters | LC/PC | LC/UPC |
|---|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm | |
| Insertion Loss (Typical) | 0.2dB | |
| Insertion Loss (Maximum) | 0.4dB | |
| Return Loss (Typical) | -50dB | -55dB |
| Mating Durability (500 cycles) | <=0.2dB | |
| Temperature Stability | <=0.3dB | |
| Operating Temperature °C | -40°C to +80°C | |
| Storage Temperature °C | -40°C to +85°C | |
