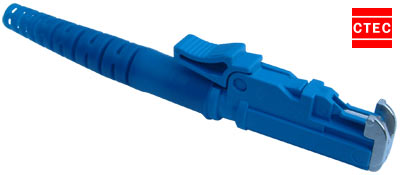

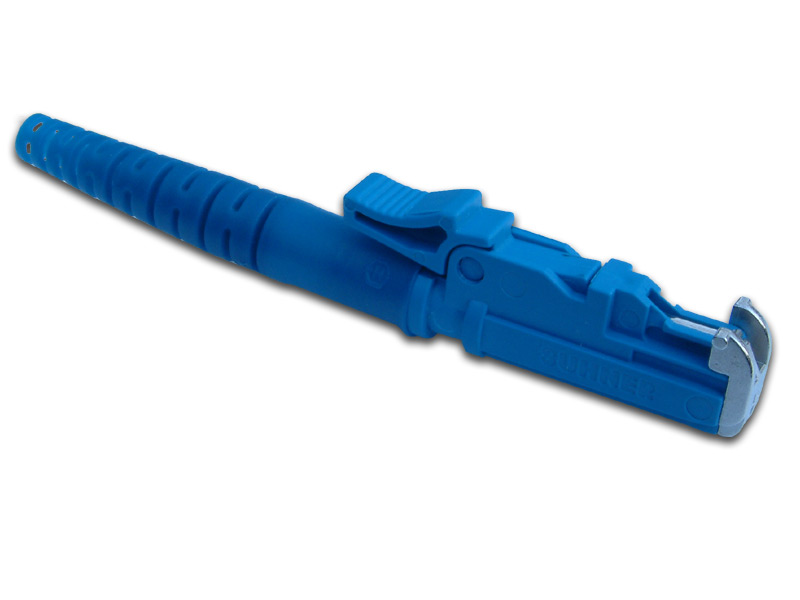

'FibreOptics'E2000/PC & E2000/UPC Connector
Overview
CTEC supplies possibly the highest quality E2000 connectors available, which address the highest of specifications encountered in the telecommunications market. These E2000 connectors offer unparalleled insertion loss mating figures, exhibit exceptional repeatability, whilst maintaining the already well established, superior features of the E2000 connector family.
Performance Criteria
| Parameters | E2000/PC | E2000/UPC |
|---|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm | |
| Insertion Loss (Typical) | 0.2dB | |
| Insertion Loss (Maximum) | 0.4dB | |
| Return Loss (Typical) | -50dB | -55dB |
| Mating Durability (500 cycles) | <=0.2dB | |
| Temperature Stability | <=0.3dB | |
| Operating Temperature °C | -40°C to +80°C | |
| Storage Temperature °C | -40°C to +85°C | |
