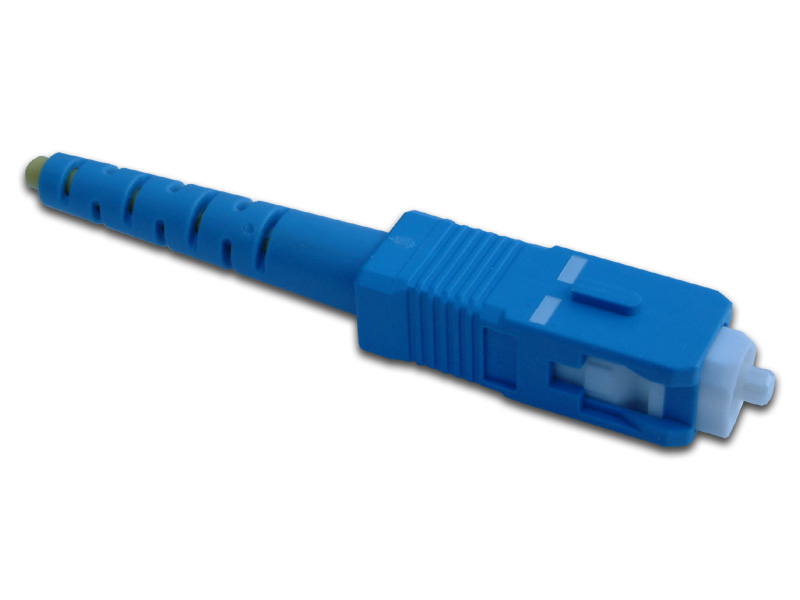

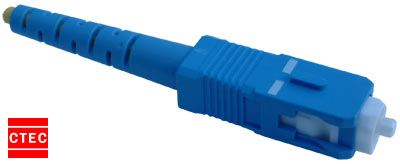

'FibreOptics'SC/PC & SC/UPC Connectors
Overview
CTEC SC/PC & SC/UPC connectors are assembled to suit customer preferences. Their performance make these CTEC products a natural choice for all SC connector applications, in any of the communications markets, such as Telecoms, CATV, WAN, LAN and Test & Measurement.
Performance Criteria
| Parameters | SC/PC | SC/UPC |
|---|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm | |
| Insertion Loss (Typical) | 0.2dB | |
| Insertion Loss (Maximum) | 0.4dB | |
| Return Loss (Typical) | -50dB | -55dB |
| Mating Durability (500 cycles) | <=0.2dB | |
| Temperature Stability | <=0.3dB | |
| Operating Temperature °C | -40°C to +80°C | |
| Storage Temperature °C | -40°C to +85°C | |
