'FibreOptics'ST/PC Connectors
Overview

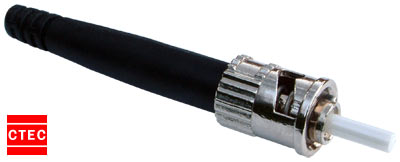

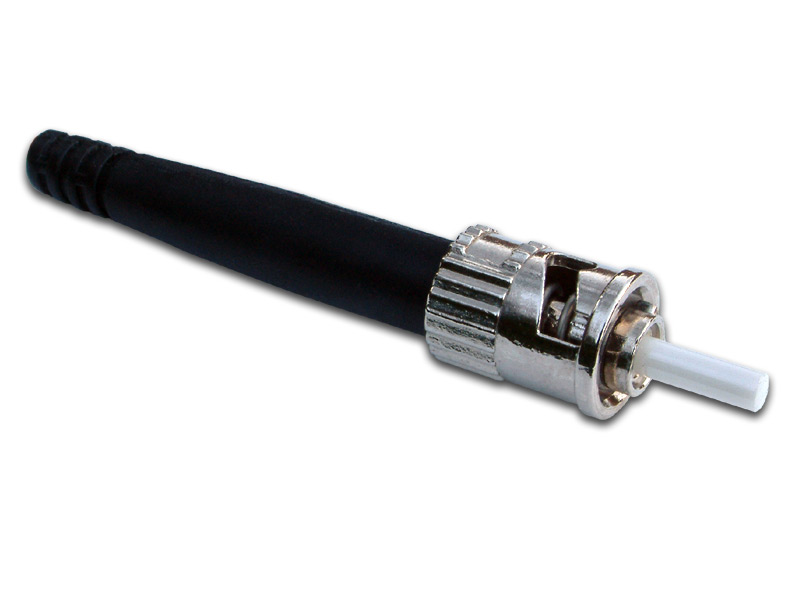

The CTEC ST fibre optic connector comprises a nickel plated brass or full die-cast body together with a full ceramic ferrule. These connectors are suitable for 900µm and 2-3mm cables. The connector is precision made and the combination of a ceramic ferrule and precision metal housing provides consistent long-term mechanical and optical performance.
Performance Criteria
| Parameters | ST/PC |
|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm |
| Insertion Loss (Typical) | 0.25dB |
| Insertion Loss (Maximum) | 0.45dB |
| Return Loss (Typical) | -50dB |
| Mating Durability (500 cycles) | <=0.2dB |
| Temperature Stability | <=0.3dB |
| Operating Temperature °C | -40°C to +80°C |
| Storage Temperature °C | -40°C to +85°C |
