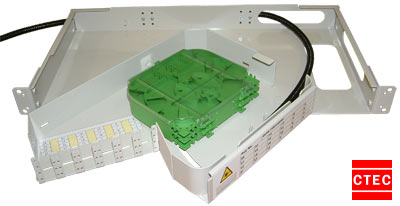

1U Craft Tray- 24 Fibre Capacity*

Applications

The Fibre Craft Tray is for front and/or rear 19" and ETSI applications (other rack types can be catered for by request). It takes various connector types via interchangeable bulkheads, including SC or E2000 (24 fibre capacity) and FC/PC or ST (16 fibre capacity*). It is particularly suited for restricted rack space applications, whilst providing many of the fibre management features found in our mainstream Optical Distribution Frames.

19 Inch and ETSI Craft TrayFeatures

  • 19” and ETSI front and rear mountable (other rack types by request).
  • Various connector types, including FC/PC or ST (24 fibre) and SC or E2000 (16 fibre)*.
  • Hinging Tray System, ensuring min R30 bend radius control.
  • Hinging Tray holds up to two 12 fibre capacity Splice Cassettes.
  • Splice Cassettes are manufactured using UL94-V0 rated CYCOLAC® VW300.
  • Cable breakout and routing via a rear Cable Clip System using Ř10mm conduit.
  • On tray routing is via highly flexible crush resistant Portex type tubing.
  • Patchcords are routed left to right through a front concealed routing channel.
